Description
Modufern Display Cabinets & Units concept: an original Modufern concept for this product type. Materials, dimensions, supplier status and manufacture require validation. Not available to purchase.

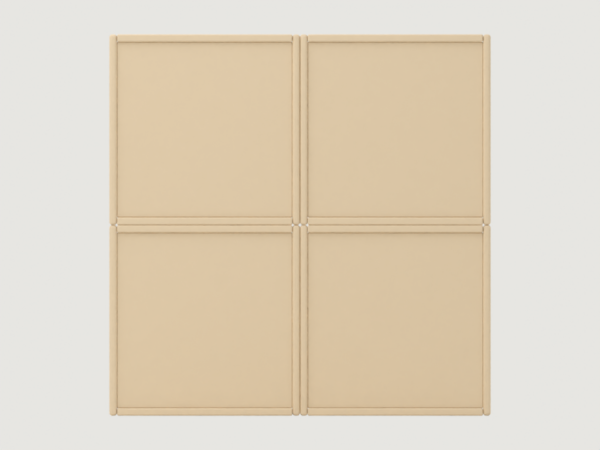

Front, image 1 of 5
Five views from one proposed CAD model. Materials, dimensions and manufacture remain unvalidated.
Modufern Display Cabinets & Units concept
Concept design — manufacturing specifications and pricing pending. Purchases are disabled.
Request a quote by email ↗
Opens your email app. Pricing and manufacture will need confirmation.
Additional information
| Design status | Concept |
|---|---|
| Product family | Display cabinets units |
Proposed components
Recipe P-F68AE0C91C6865ACC61EE18D. Design quantities shown where defined; engineering, connectors, hardware and fit remain unvalidated. This is not a fabrication-ready bill of materials or a statement of inventory availability.
- cad-part-1 × 4 each — Storage carcass module · MF-PART-CARCASS-R01
- cad-part-2 × 4 each — Storage shelf module · MF-PART-SHELF-R01

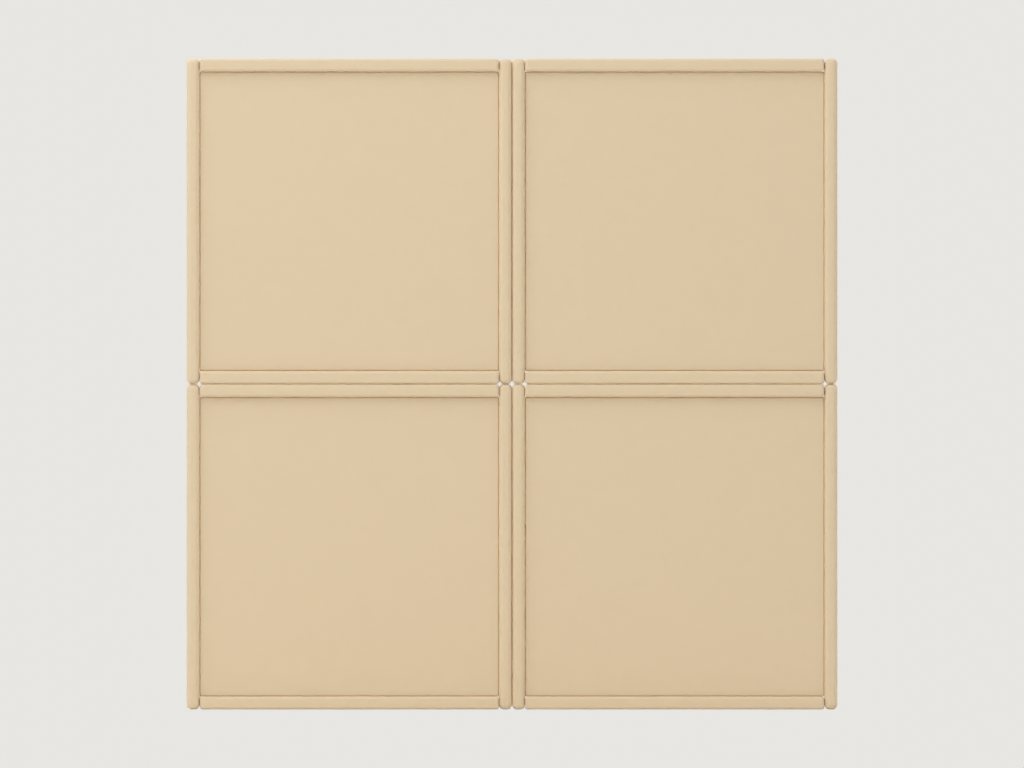

Render derived from parametric concept model CASEGOODS-LAYOUT-CANDIDATE-01. Proposed dimensions, joinery and manufacture require maker approval.
Notes from this concept model
Modufern Display Cabinets & Units concept. Concept design — manufacturing specifications and pricing pending. Proposed CAD envelope 900 × 400 × 900 mm; manufacturing dimensions remain unvalidated. Length × width × height; sold unit each. This layout reuses the exact separately listed component concepts in its proposed recipe. Hardware, joining, compatibility, material supply and any applicable performance/compliance requirements remain unvalidated.
Explore the 3D concept
Static CAD-derived concept image. Load 3D when ready.
- Proposed length × width × height
- 900 × 400 × 900 mm
- Model revision
- CASEGOODS-LAYOUT-CANDIDATE-01
- Design status
- Concept; material supply, joinery, tolerances and manufacturing approval pending.
