Additional information
| Material | White oak (design intent) |
|---|---|
| Finish | Matte clear finish (proposed) |
| Modular family | Portal |
| Design status | Concept — manufacture unvalidated |
| Component type | Connecting rail |

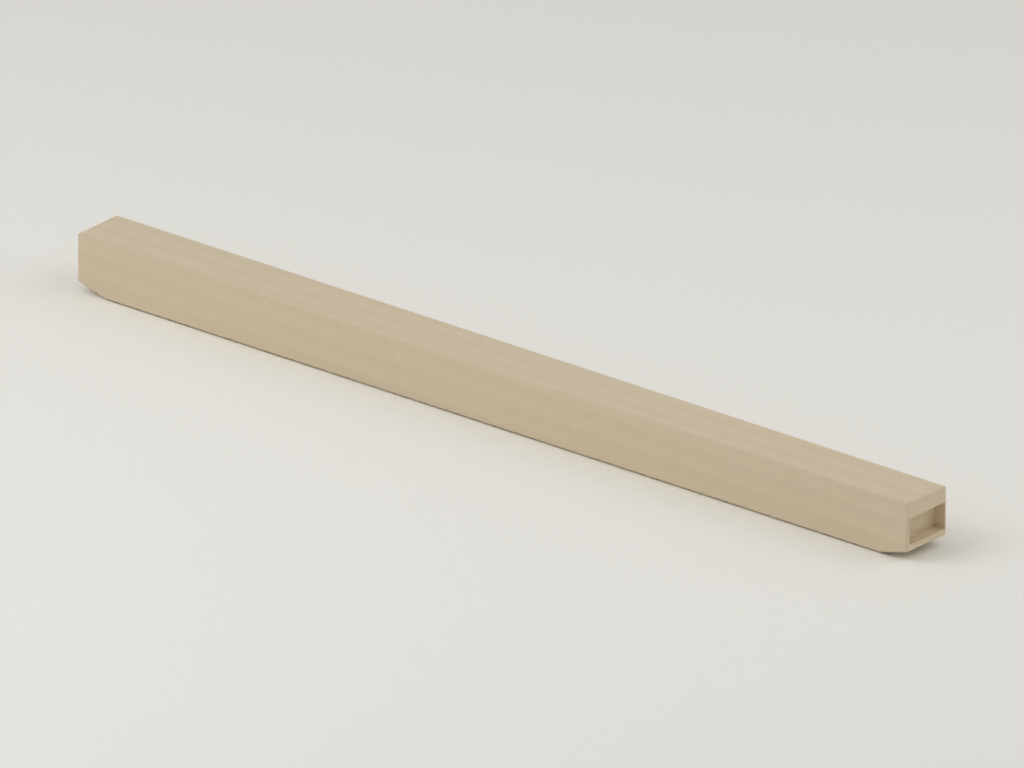

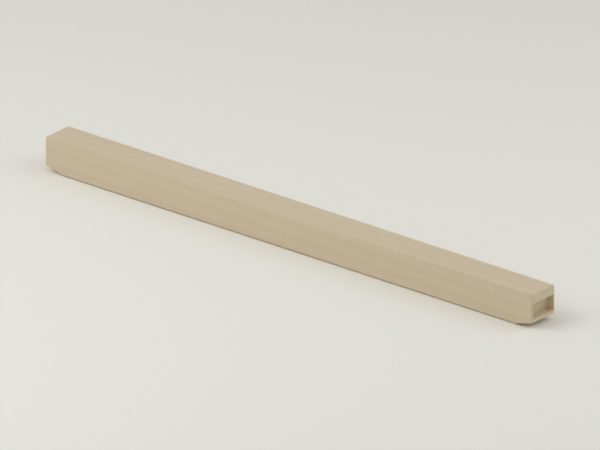

01 hero, image 1 of 5
Five views from one proposed CAD model. Materials, dimensions and manufacture remain unvalidated.
Portal connecting rail — 900 mm concept
Concept design — manufacturing specifications and pricing pending. Purchases are disabled.
Request a quote by email ↗
Opens your email app. Pricing and manufacture will need confirmation.
Concept design — manufacturing specifications and pricing pending. White-oak material and finish are design intentions. This separately identified component has five CAD-derived views and a matching interactive 3D model; fit and joints remain unvalidated.
Render derived from parametric concept model a8c54e0a75272256674129d94875f5f818505c6ea1d6e2da20f739bf6ce4bedf. Proposed dimensions, joinery and manufacture require maker approval.
Designed in parts
Concept only. Parts, materials and fit require factory validation.
Notes from this concept model
Portal connecting rail — 900 mm concept. Concept design — manufacturing specifications and pricing pending. Proposed CAD envelope 900 × 52 × 52 mm (length × width × height); dimensions are design proposals, not approved manufacturing specifications. Sold unit: each. Material and finish are design intentions; supply, fit, joining, performance and any applicable compliance requirements remain unvalidated.
Explore the 3D concept
Static CAD-derived concept image. Load 3D when ready.
- Proposed length × width × height
- 900 × 52 × 52 mm
- Model revision
- a8c54e0a7527…
- Design status
- Concept; material supply, joinery, tolerances and manufacturing approval pending.
